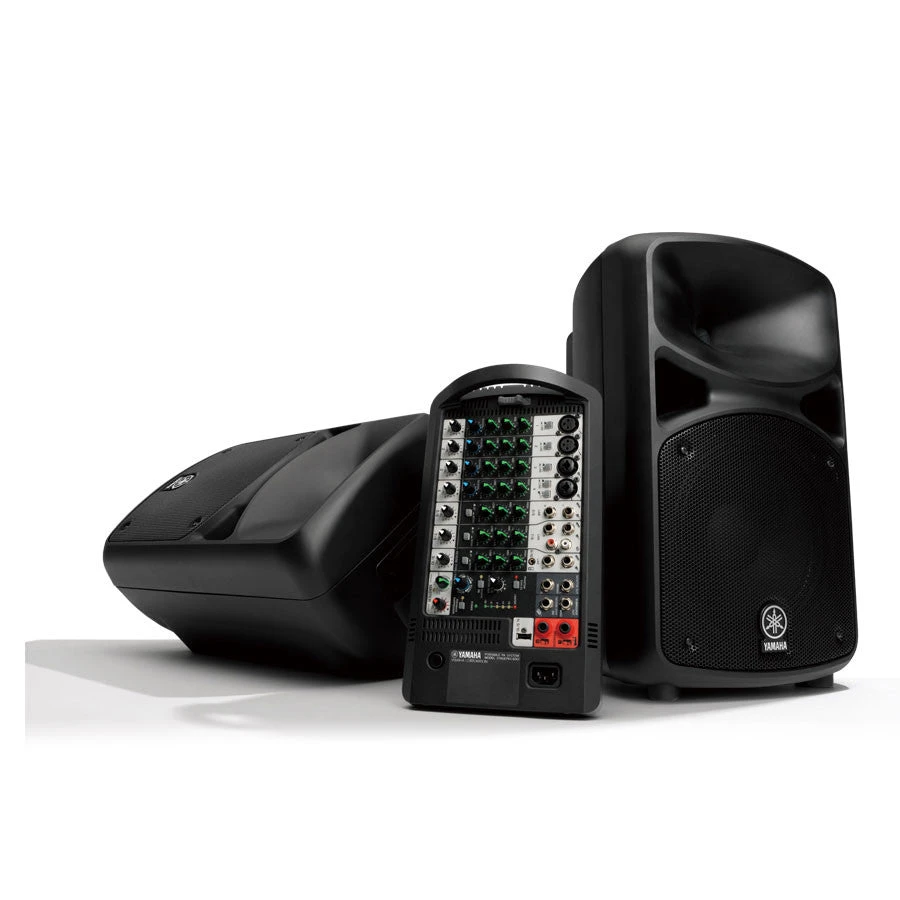

680-watt, portable PA system with 10-channel powered mixer, two 10″ speakers, iPod/iPhone USB connection, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
- 680W (340W + 340W) power output
- Newly designed high quality speakers (LF:10″ woofer/ HF:1.4″ voice coil compression driver)
- Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
- iPod/ iPhone USB connection
- 1-Knob Master EQ™ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 3-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
- Optional reverb footswitch
- StageLok™ clamps provide secure speaker mounting
- Overview
- Specs
- Optional Accessories
- Support
- Reviews
Specifications
System
| System Type | Powered mixer with 2 passive speakers | |||
|---|---|---|---|---|
| Maximum SPL (*Maximum SPL) | 129dB SPL / speaker | |||
| Frequency Range (-10 dB) | 55Hz – 20kHz | |||
| Power Consumption | 35W (Idle), 100W (1/8 Power) | |||
| Power Requirements | 100V – 240V 50 Hz/60Hz | |||
| Dimentions (W x H x D) | Speaker 335x545x319mm, Mixer 348x197x135mm | |||
| Net Weight | 25.4kg / 56lbs (2 x Speaker 10.8kg + Mixer 3.8kg) | |||
Powered Mixer
| Mixer | Mixing channels | 10 | ||
|---|---|---|---|---|
| Analog inputs | 4 mono mic/line + 6 mono / 3 stereo line | |||
| Digital inputs | USB Audio IN: iPod/iPhone exclusive | |||
| Channel EQ | 3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz) | |||
| Channel functions | Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 | |||
| Digital effects | SPX digital reverb (4 program, parameter control) | |||
| Output processing | Feedback suppressor, 1-Knob Master EQ™ | |||
| Phantom power | +30V (CH1, 2) | |||
| Outputs | SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF | |||
| Control and others | Reverb foot switch | |||
| Built-in Amplifiers | Power Rating (Dynamic) | 680W (340W + 340W) | ||
| Power Rating (Continuous) | 560W (280W + 280W) | |||
Speaker
| Type | Two-way bass-relfex speakers | |||
|---|---|---|---|---|
| Transducers | LF: 10” (25cm) cone, HF: 1.4” (3.56cm) voice coil compression driver | |||
| Coverage Angle (Horizontal x Vertical) | 90° x 60° | |||
| Floor Monitor Angle | 50° | |||
| Handle | 1 x Top | |||
| Pole socket | 34.8-35.2mm pole socket with StageLok™ | |||
