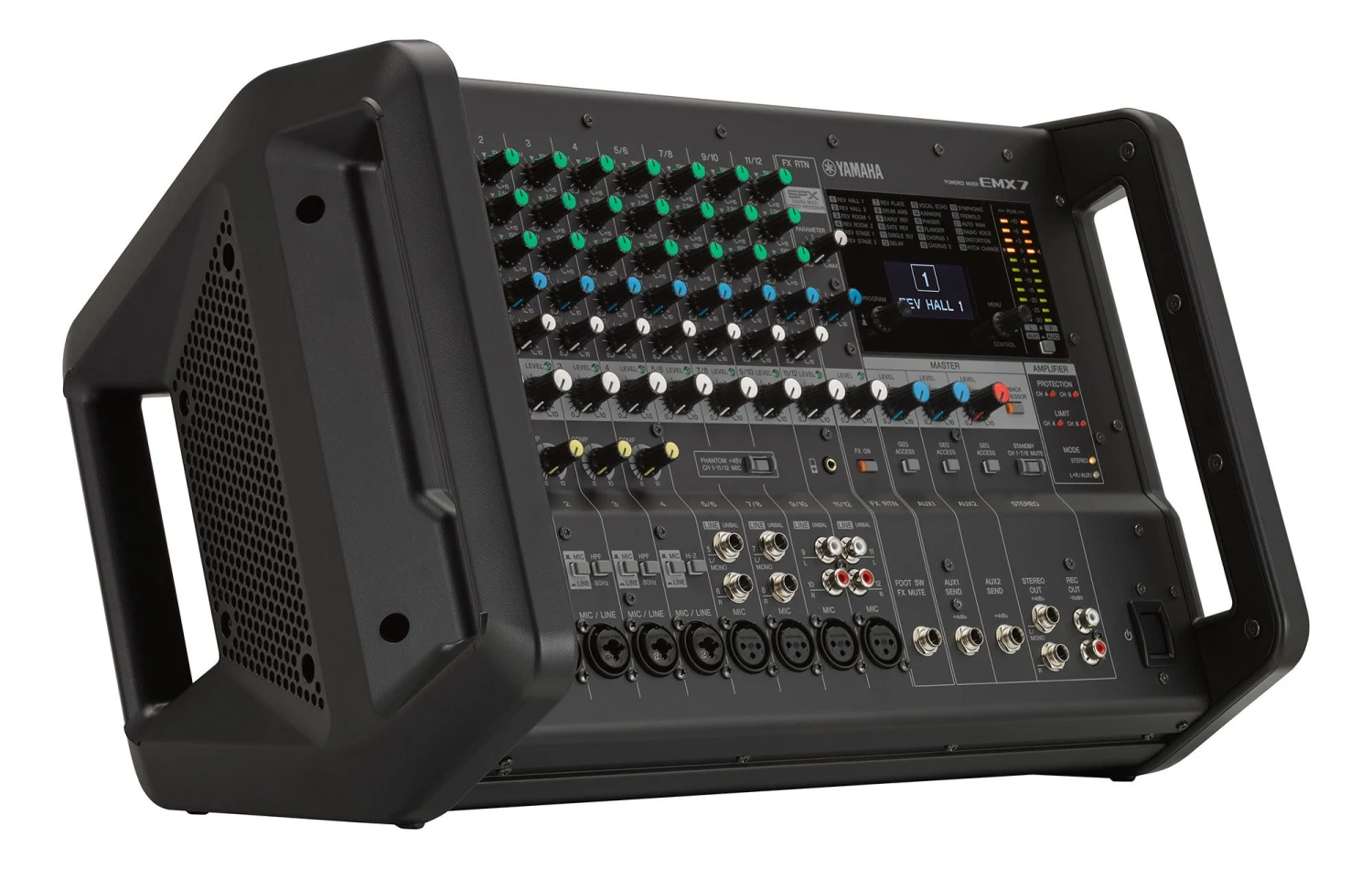

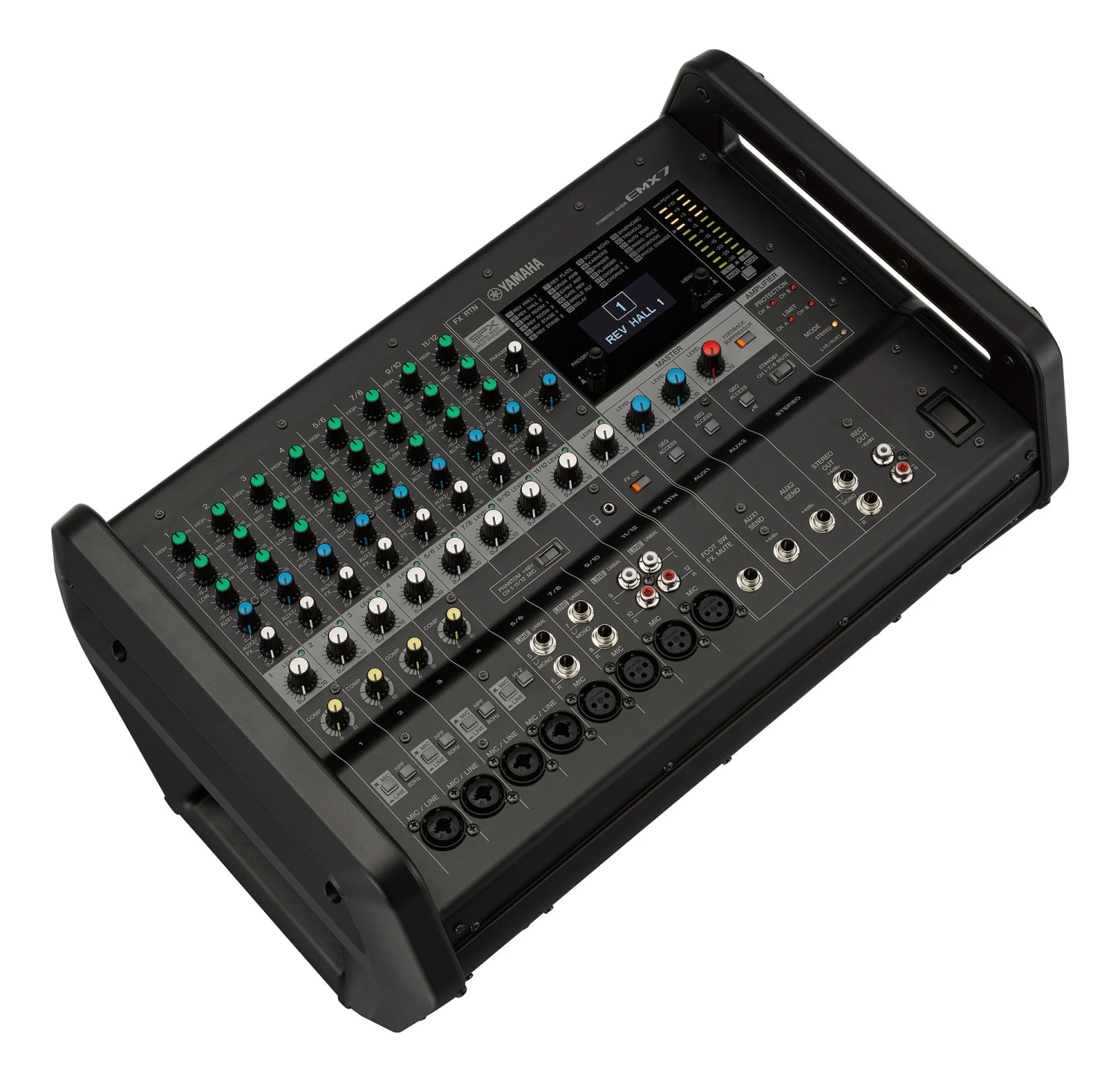

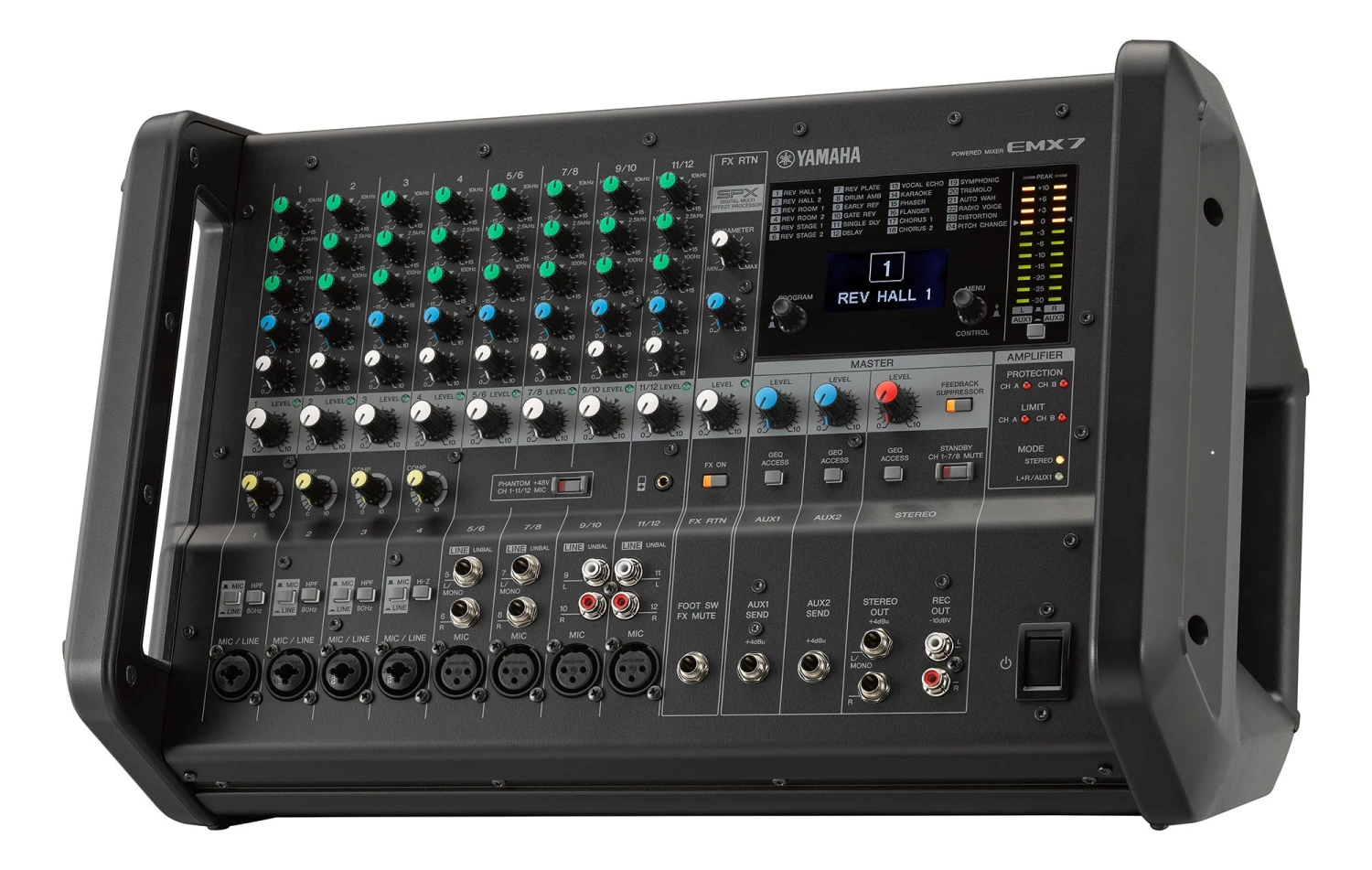

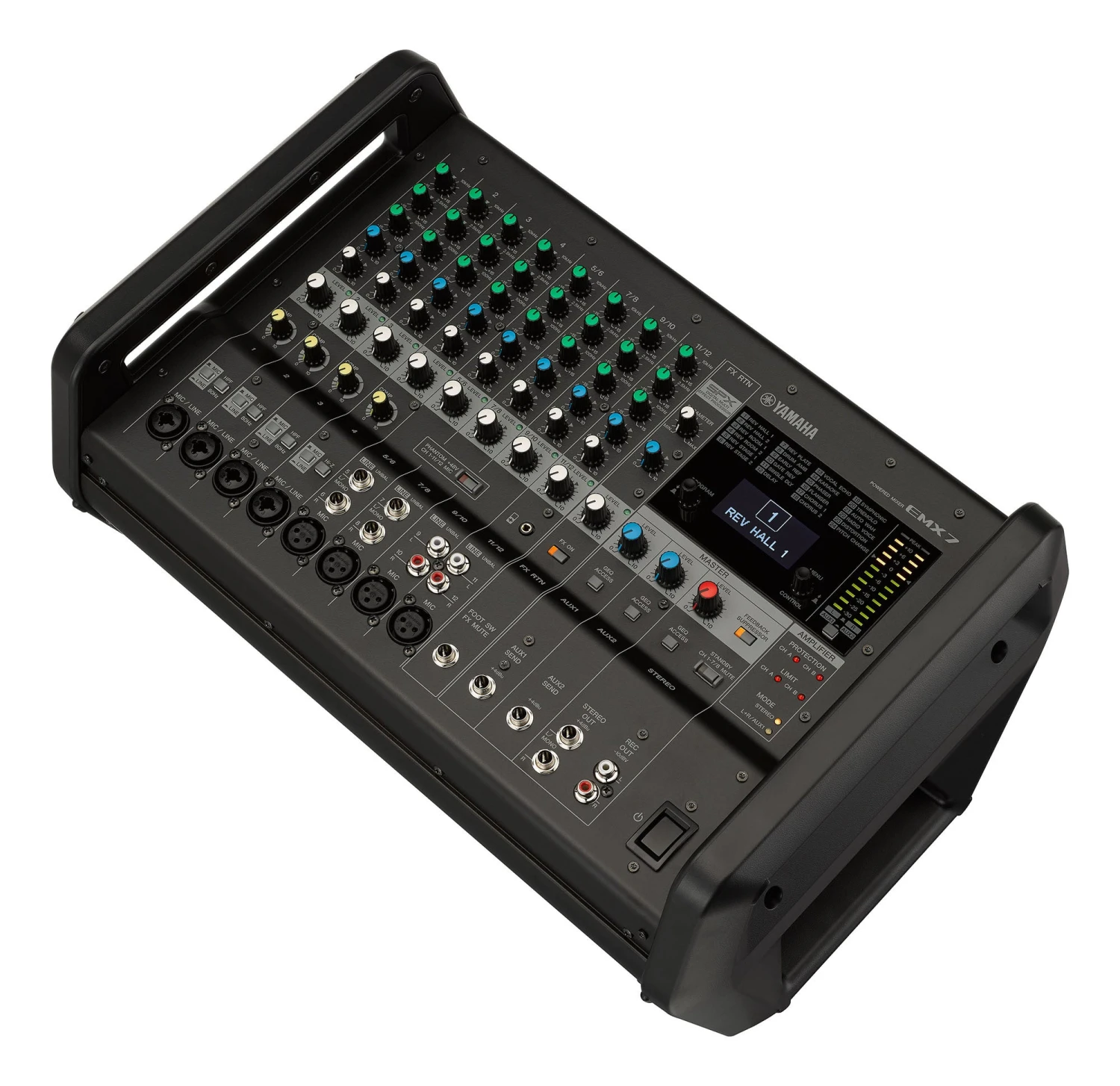

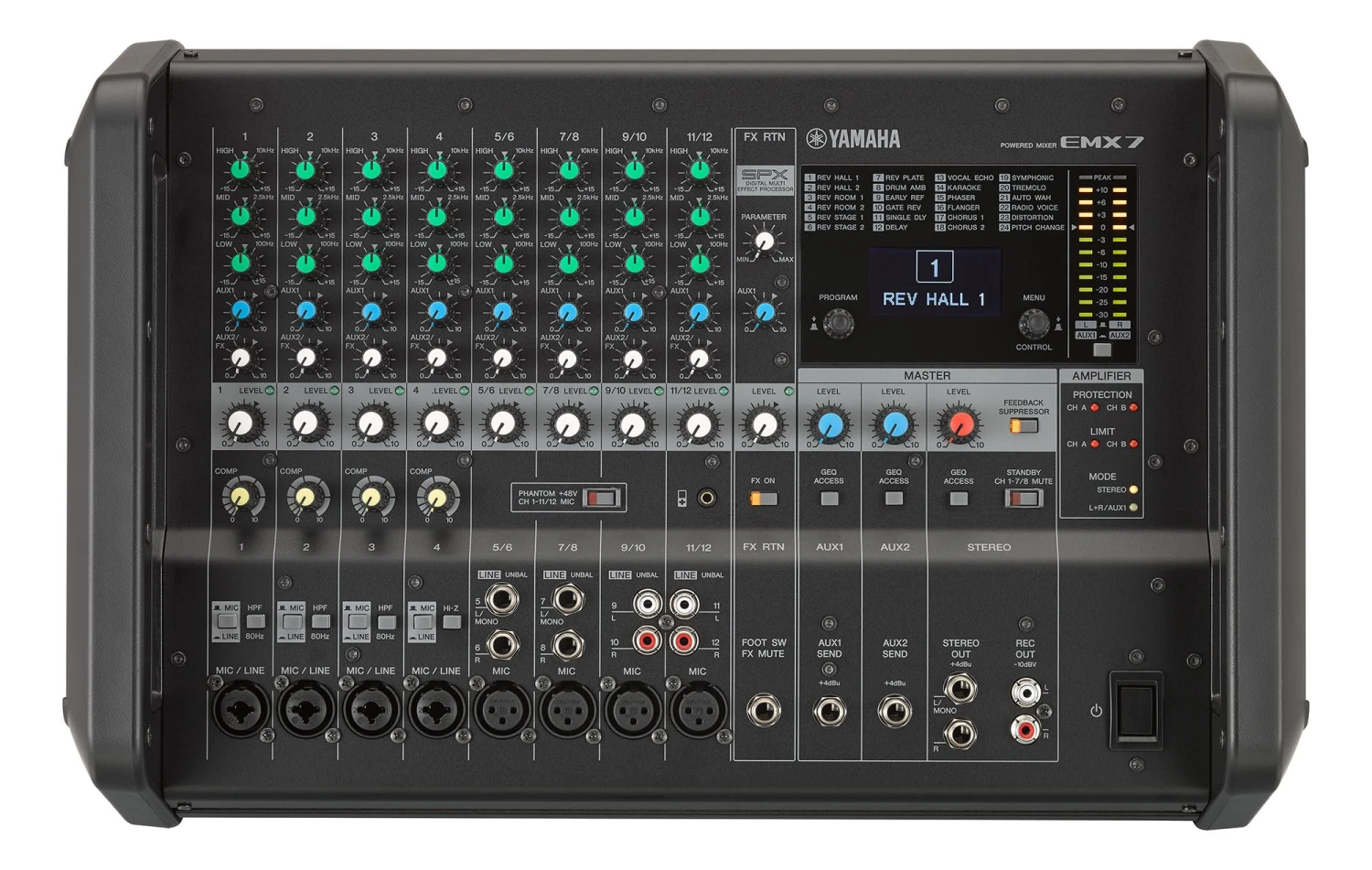

Yamaha EMX7 High Efficiency Portable Powered Mixer

The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

• Powerful & High Efficiency Class-D Amplifier
• Robust But Extremely Portable Design
• Easy Setup, Easy Operation
• Complete Range of Input & Output Channels
• Speaker Processor and Preset (EMX7 only)
• Onboard Feedback Suppressor
• 3-band Equalizer Control
• Flex 9 Graphic Equalizer (EMX7 only)
• 1-Knob Master EQ™ (EMX5 only)
• 1-knob COMP
• Rack-Mounting
• Comprehensive, Professional Effects and Signal Processing
• Flexible Speaker Connectivity
• Internal Universal Power Supply

Outline		EMX7	EMX5
I/O	Inputs	TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)	TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
	Phantom power	+48 V	+48 V
	Outputs	SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]	SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
	Control and others	FOOT SWITCH : Effect Mute on/off	FOOT SWITCH : Effect Mute on/off
Bus		Stereo: 1, AUX: 2 (Including FX)	Stereo: 1, AUX: 2 (Including FX)
Input Channel Function	PAD	30 dB (CH1-4)	30 dB (CH1-4)
	Hi-Z	Supported (CH4)	Supported (CH4)
	HPF	80 Hz, -12 dB/oct. (CH1–3)	80 Hz, -12 dB/oct. (CH1–3)
	COMP	1-knob COMP (CH1–4)	1-knob COMP (CH1–4)
	EQ HIGH	10 kHz +15 dB / -15 dB (Shelving)	10 kHz +15 dB / -15 dB (Shelving)
	EQ MID	2.5 kHz +15 dB / -15 dB (Peaking)	2.5 kHz +15 dB / -15 dB (Peaking)
	EQ LOW	100 Hz +15 dB / -15 dB (Shelving)	100 Hz +15 dB / -15 dB (Shelving)
On-board processors	DSP	SPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor	SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiers	Maximum output power @4ohms	1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W	1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
	Maximum output power @8ohms	1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W	1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter		2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)	2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
General specifications		EMX7	EMX5
Frequency response		Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz	Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion		Input to SPEAKERS: MIC/LINE =LINE (CH1–4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1–4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)	Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level	Equivalent input noise	-117 dBu (Noise is measured with A-weighting filter)	-117 dBu (Noise is measured with A-weighting filter)
	Residual output noise	Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)	Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk		-85 dB (1 kHz, Measured with 1 kHz band pass filter)	-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit	Load protection	DC-fault	DC-fault
	Amplifier protection	Over heat protection, Over current protection, Integral power protection	Over heat protection, Over current protection, Integral power protection
	Power supply protection	Over heat protection, Over current protection	Over heat protection, Over current protection
Power requirements		AC 100-240V, 50Hz/60Hz	AC 100-240V, 50Hz/60Hz
Power consumption		45 W (Idle) / 250 W (1/8 Power)	42 W (Idle) / 210 W (1/8 Power)
Dimensions	W	465 mm (18 5/16″)	465 mm (18 5/16″)
	H	308 mm (12 1/8″)	308 mm (12 1/8″)
	D	325 mm (12 13/16″)	325 mm (12 13/16″)
Net weight		9.5 kg (20.9 lbs)	9.5 kg (20.9 lbs)
Accessories		Owner’s Manual, Technical Specifications, AC power cord (2.5 m)	Owner’s Manual, Technical Specifications, AC power cord (2.5 m)
Options		Foot switch: FC5, Rack-mount brackets: RK-EMX7	Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others		Operating Temperature : 0 to +40℃	Operating Temperature : 0 to +40℃

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

Input Characteristics

(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

Output Characteristics

(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics
