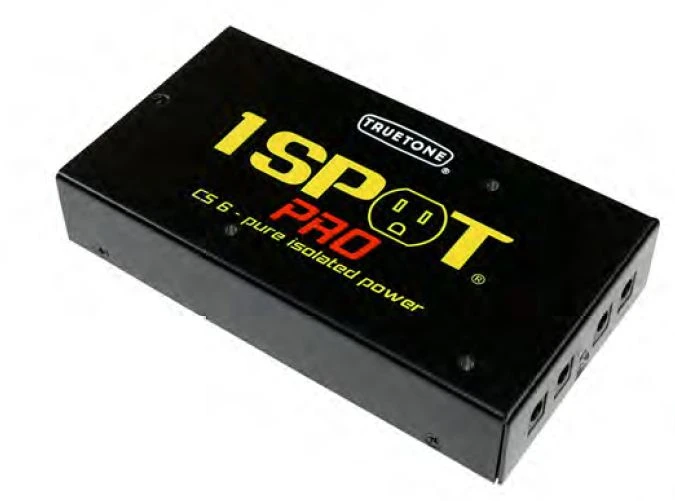

TRUETONE CS6 1 Spot Pro PURE ISOLATED POWER

Features:

• 1 SPOT Technology
• Multiple Output Voltages
• Includes a generous assortment of cables and converter plugs
• Worldwide Input Voltage
• Rugged Steel Housing

The world’s first low profile power brick with switching power supply technology.

Following on the tremendous success of the 1 SPOT Pro CS7 and CS12, Truetone presents the most powerful

slim line power supply in its class, the 1 SPOT Pro CS6. Utilizing the energy efficient technology found in all 1

SPOT’s, the CS6 is the first low-profile power brick to be able to put out up to 1600mA of pure, silent power.

Just like its bigger brothers in the 1 SPOT Pro line, the CS6 has a variety of DC voltages available to power just

about any pedal on the market. Each output is completely isolated, regulated and filtered, eliminating

crosstalk and noise. With no big transformer to hinder their performance, proximity noise is not an issue with

any 1 SPOT Pro.

The low-profile design of the 1 SPOT Pro CS6 allows it to be mounted under flat pedalboards like the

Pedaltrain® Nano and Metro series. However, the compact design is also perfect for mounting on top of

pedalboards, serving the dual role of a power supply and pedal riser.

• Outputs 1-2: 9VDC (500mA)
• Outputs 3-4: 9VDC or 18VDC (100mA)
• Outputs 5-6: 9VDC or 12VDC (200mA)

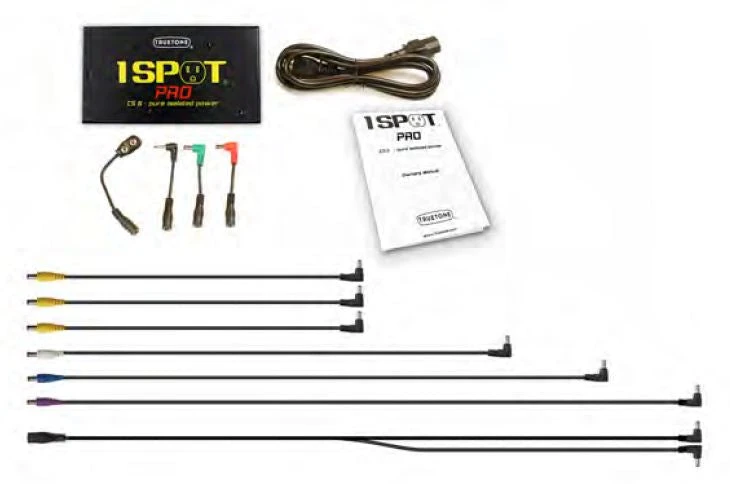

The 1 SPOT Pro CS6 includes a generous assortment of cables and converter plugs. The cables are of various

lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
