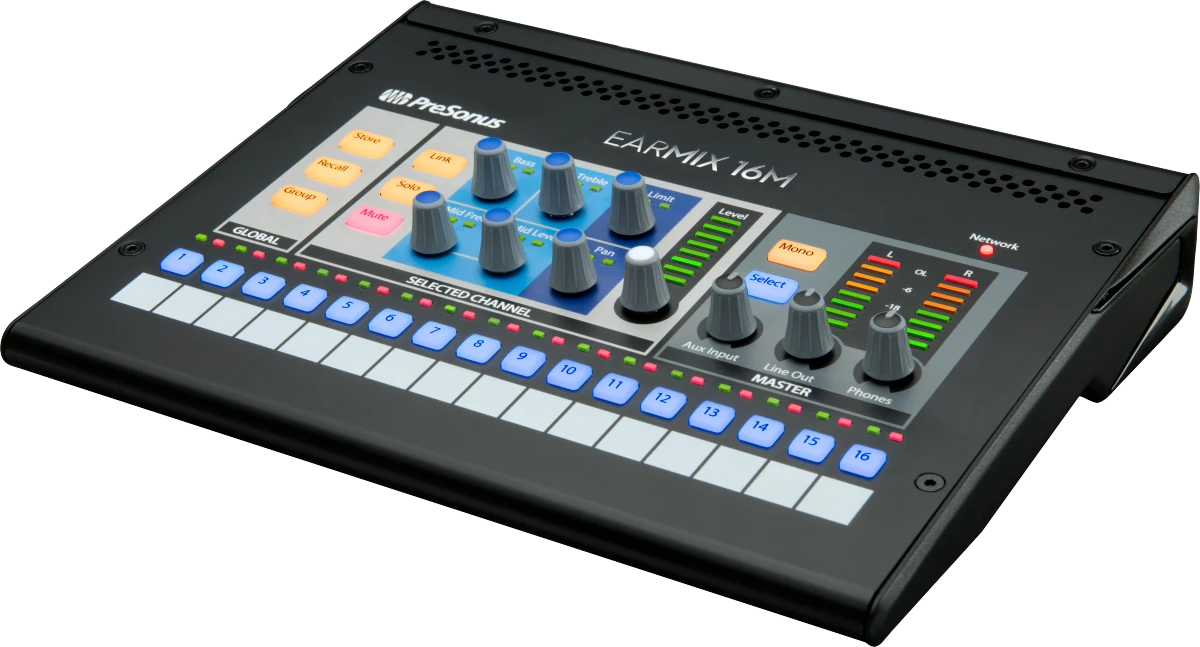

PreSonus® EarMix 16M Personal Monitor Mixer, Black 2779300102

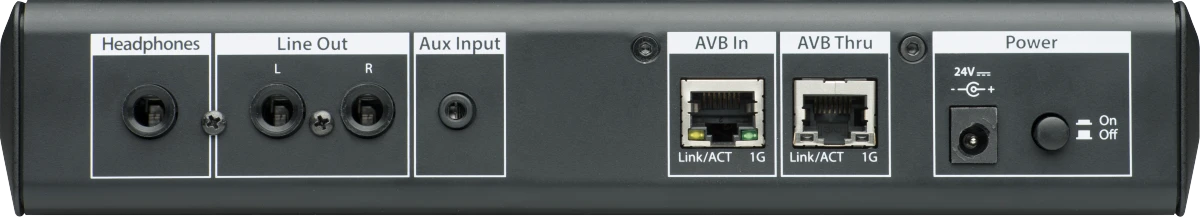

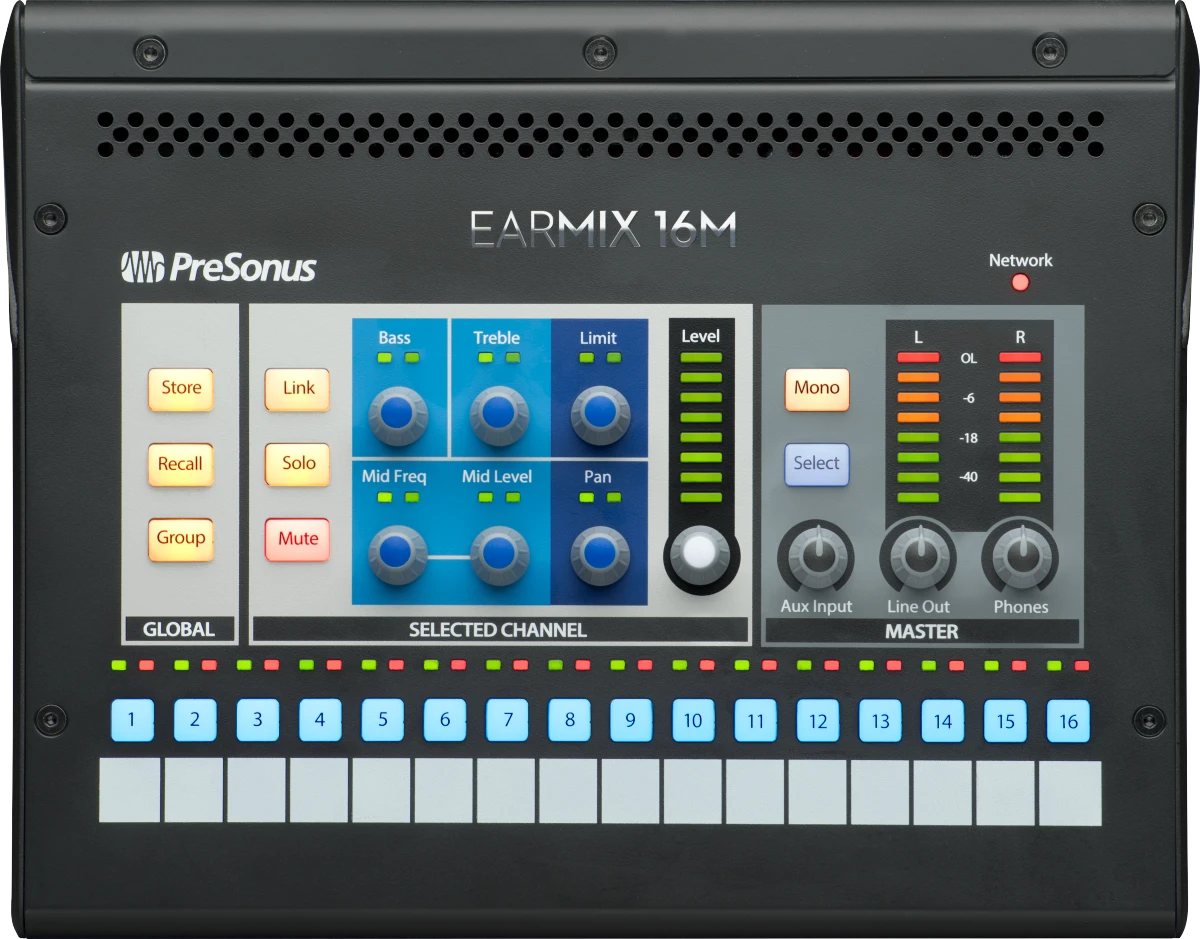

Designed to work seamlessly with PreSonus’ StudioLive Series III family of mixers, yet compatible with other AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer accepts 16 mono channels of input via AVB networking. An aux input admits an external source to the local mix. You get stereo channel linking and channel grouping, along with three-band EQ and limiting for each channel and the main mix, balanced ¼-inch TRS L/R outputs, and a loud, clear headphone amplifier that can drive low impedance devices such as high quality in-ear-monitors. Two AVB jacks enable daisy chaining; network up to 24 units with a StudioLive Series III mixer. The EarMix 16M can be powered from the included external power supply or over Ethernet (PoE) from a compatible switch.

Electronics

Voltage

100-120V

Performance

Digital Audio Dynamic Range

115 dB (A-Weighted, 48 kHz)

Outputs

Headphone Outputs Frequency Response

20 Hz to 20 kHz, +/-0.5 dB

Headphone Outputs Maximum Output

150 mW /Channel at 60 Ω

Headphone Outputs Total Harmonic Distortion

0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

Line Outputs Connection Type

1/4″ TRS, Balanced

Line Outputs Maximum Output Level

+18 dBu, ±0.5 dBu

Line Outputs Output Impedance

100 Ohms

Hardware

Digital Audio AVB Audio Network Ports

RJ45
