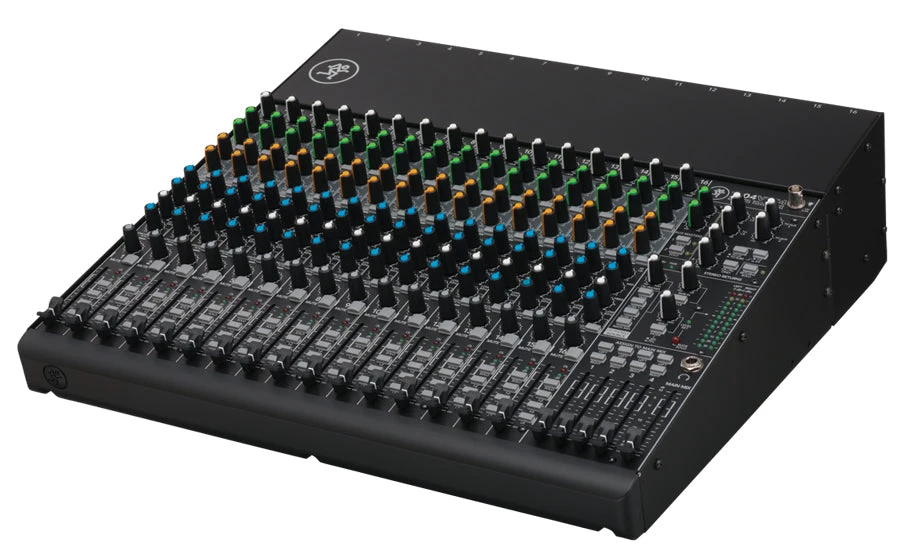

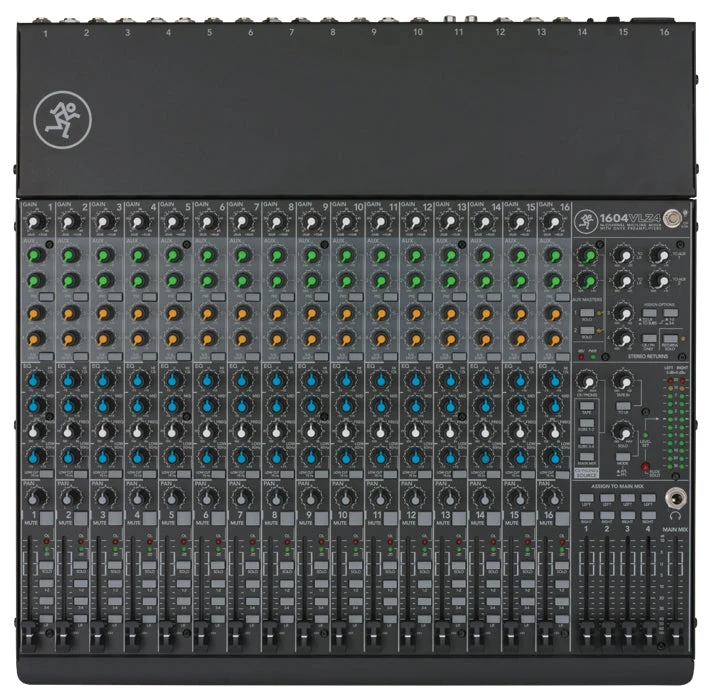

Mackie 1604 VLZ4 16-channel Compact 4-bus Mixer

Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

1604VLZ4 Features

• 16-channel mixer featuring Mackie signature high-headroom/low-noise design
• 16 boutique-quality Onyx mic preamps
  • Ultra-wide 60dB gain range
  • 128.5 dB dynamic range
  • +22 dBu line input handling
  • Extended frequency response
  • Distortion under 0.0007% (20Hz – 50kHz)
  • Phantom power for studio condenser mics
• Improved RF rejection perfect for broadcast applications
• Phantom power for condenser mics
• 16 high-headroom line inputs with +4/-10 operation control
• 16 balanced inserts perfect for integrating outboard gear
• 3-band EQ with sweepable midrange
• 18 dB/oct 75Hz low-cut filter on mic input channels
• 4 aux sends, level, pan, solo and overload/mute LEDs on each channel
• 4 stereo returns, 8 direct outs and 4 group/bus outputs
• 60mm long-wearing log-taper faders
• Control room / phones multi-input source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary control resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
• Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
• Multi-voltage power supply for worldwide use

1604VLZ4 Physical Properties (packaged product)

• Height: 9.3 in / 236 mm
• Depth: 20.7 in / 526 mm
• Width: 21.3 in / 541 mm
• Weight: 24.0 lb / 10.9 kg

1604VLZ4 Physical Properties (product)

• Height: 17.0 in / 433 mm
• Depth: 5.1 in / 129 mm
• Width: 17.3 in / 440 mm
• Weight: 20.0 lb / 9.1 kg
